RFID label for books, magazines etc.
White, coated paper label with RFID tag and permanent adhesive.
Label size: 50 x 80 mm
Antenna size: 45 x 76 mm
NXP I-CODE SLIX ICS20 (ISO15693/18000-3/28560-1).
13.56 MHz, 1024 bits (128 bytes)
The label consists of 3 layers:
• Top layer of wood-free, white, coated printable paper
• Intermediate (transponder layer) in transparent PET, 50 micron
• Adhesive (hot melt glue), 25-30 microns
The label adhesive remains stable at temperatures between -40 and +90 degrees celsius.
Labels per roll: 1,500 pcs.

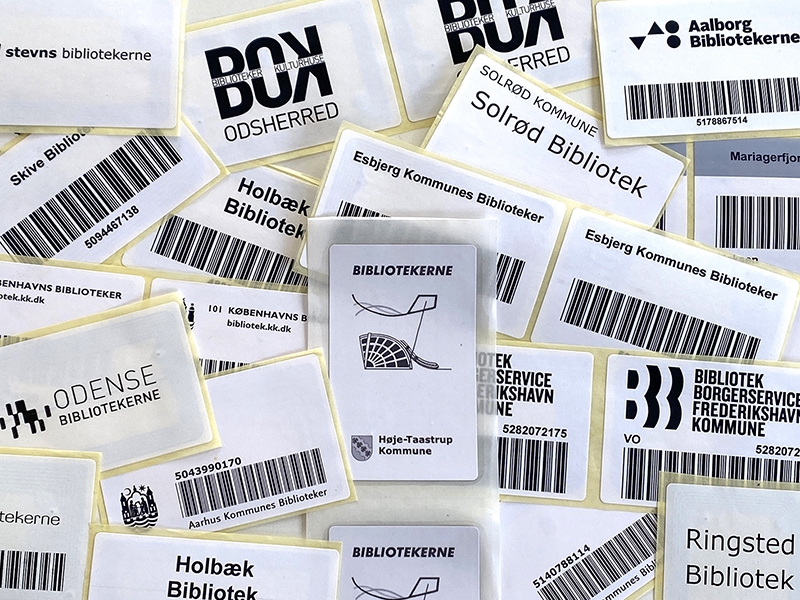

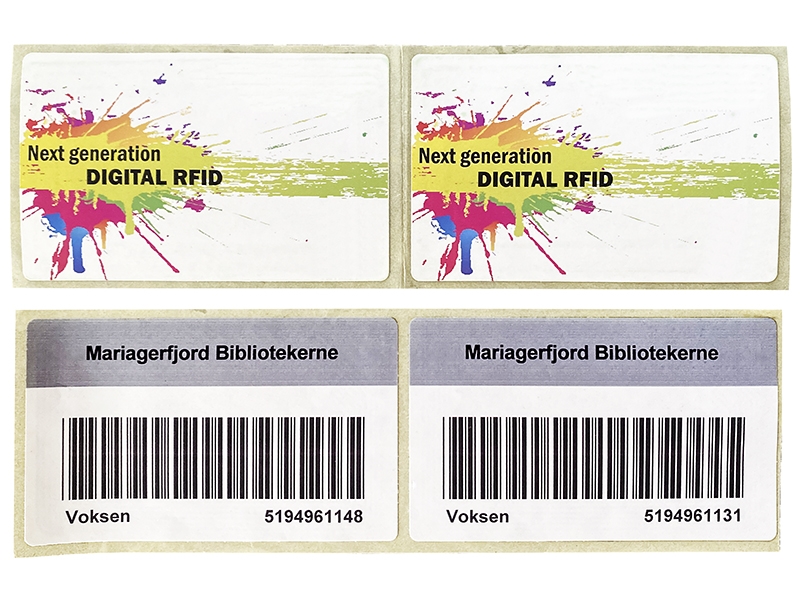

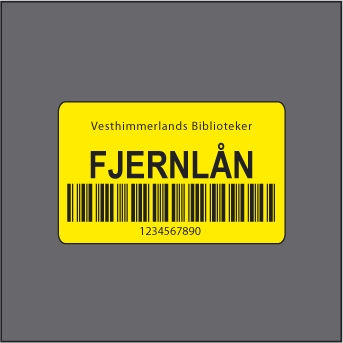

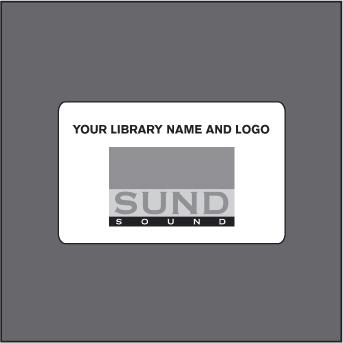

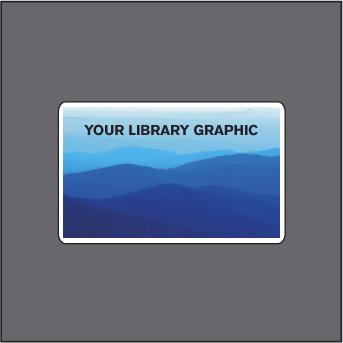

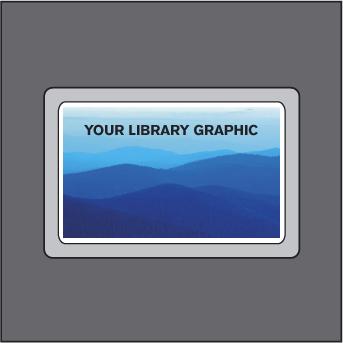

Labels with customized print
The labels come with print of your choice as well.
Please order item SSL RFID61
This RFID label is produced with "Long Life Smart Inlay", which consist of the RFID chip, polyester film (PET), and an aluminum antenna.
"Long-Life Smart Inlays" are produced without the use of conductive adhesive between the chip and antenna. The chip is mounted with a UV lamination, and is not affected by surface oxidation, temperature fluctuations, humidity etc.
Our "Long Life Smart Inlays" ensure a constant value of the electrical resistance for many years. Our RFID inlays meet the rigorous demands of e.g. both the German automotive industry and the pharmaceutical industry.
